LED Strip Light LED Rope Light high voltage
High Voltage LED Strip Lights Manufacturer

Project LED Strip Lights, 3Years warranty, CE RoHS certificate

LED Strip Light High Voltage RGB

Professional High Voltage 110v/ 220v LED Strip Lights Supplier

We have been producing high voltage 110v/220v led strip lights/led rope lights for more than 10 years, and we offer from 1-year to 3 years warranty on all of our led strip lights/led rope lights. our popular led chip is 5050, 2835, 5730, 4040.

The available color options are red, green, blue, lemon, pink, purple, amber, ice blue, yellow, and many more. You can also create any lighting effects without varieties of color temperatures, such as 2500K, 2700K, 3000K, 3500K, 4000K, 5000K, and 6000K.

Mikoo’s high voltage 110v/220v LED strip lights have a higher color rendering index of 80 to 90 CRI. So, you will get a better artificial light source and natural lighting colors.

You can cut our led strip lights by 10cm,0.5meter,1.0meter. There are blanks in each meter of LED strips, you can easy to cut and connect them. The PCB width of our high voltage LED strips ranges from 6mm to 10mm. We use high-quality RoHS PVC materials for environmental protection.

Want high voltage LED strip lights in bulk, get a free quote now.

led strip light 220v 2835

Our 220v 2835 led strip light 180led for the project use, 1500lumen per meter, Max meter is 25m. 10meter box pacakge also available. 3Year warranty.

2835 LED Strip Light CCT white and warmwhite

110v/220v 2835 LED Strip Light CCT white and warm white color, with the controller you can turn it into white color or warm white color or mix color.

5050 LED Strip Light

110v/220v 5050 led strip light,  60led or 120led, 10m, 20m,25m, 50m, Custom meters and package.

5730 LED Strip Light

110v/220v 5730/5630 LED Strip Light, 60led and 120led, one line or two lines. Custom meters and package.

led strip light 110v 5050 RGB

110v/220v LED Strip Light 5050 RGB set, 5meter、10meter、15meter with the controller only, No need for power supply and driver, very easy to install. Custom meters and package.

Wireless led strip light

Wireless LED Strip Light, 110v/220v, 2835 120led, 760lm/m, 8.3w per meter, 100meter per roll. 5year warranty.

wireless-3038-120D 10IC

Wireless 3038 high voltage 110v/220v led strip lights, 3038-120D-10IC, 10cm/cut, no need power supply, power free.

wireless-2835-120d

high voltage 110v/220v 2835 led strip lights wireless, no copper wire inside, 2835-120D-8mm-1m/cut. also 20cm/cut available.

3535-8-120D-20cm/cut

high voltage 110v/220v 3535 led strip lights wireless, no copper wire inside, 3535-8mm-120D-20cm/cut.

2835-180d-wireless

high voltage 110v/220v 2835 led strip lights wireless, 2835-11mm-180d-wireless, 2line and 3line.

2835-120D-ww-w

high voltage 110v/220v 2835 led strip lights wireless, warmwhite+white 2 colors together, you can use white or warm white or white+warmwhite.

Wireless 5050 60d RGB

high voltage 110v/220v 5050 led strip lights wireless, Wireless 5050-60d-12mm-32R-RGB, 50m per roll.

All types of High Voltage LED Strip Lights To Support Your Projects

Mikoo’s 110v,220v, 230v high voltage LED strip lights give accurate brightness beyond belief. Our advanced LED chips ensure long service life providing security and stability. So, you will get the same brightness both at the beginning and at the end of LED strip lights for higher voltage.

Mikoo uses a double anti-oxidation copper FPC circuit board. You can bend them at different angles. Its high-precision fin-copper plastic process has faster and better heat dissipation performance. Our LED chips provide energy conservation and environmental protection.

Our high voltage LED strip lights to have different power capacities. The power per meter strips ranges from 5W to 24W. Our industry-leading production capacity has gained competitive advantages in efficiency and price. So, we can offer you the most competitive price to support your projects and businesses.

You can install high-voltage LED strip lights on almost all kinds of surfaces. The IP ratings of IP65 protect against water.

We can provide custom designs for your particular lighting projects, send your inquiry to get a quote now!

Data Sheet

High Voltage LED Strip Lights | The Ultimate FAQ Guide



When You buy strip lights, the first question that will hit your mind is whether you need low Voltage or High Voltage LED strip lights? However, there are many other factors to consider, but Voltage is the primary consideration of every LED strip light buyer.

As a leading LED strip light manufacturer, we often hear this question. Therefore, we decided to come up with the ultimate FAQ guide on High Voltage LED strip lights. After reading the article, we hope you will find everything you need to know about high Voltage LED strip lights, or you can also consult our online sales team workers.

1. What Are High Voltage LED Strip Lights?

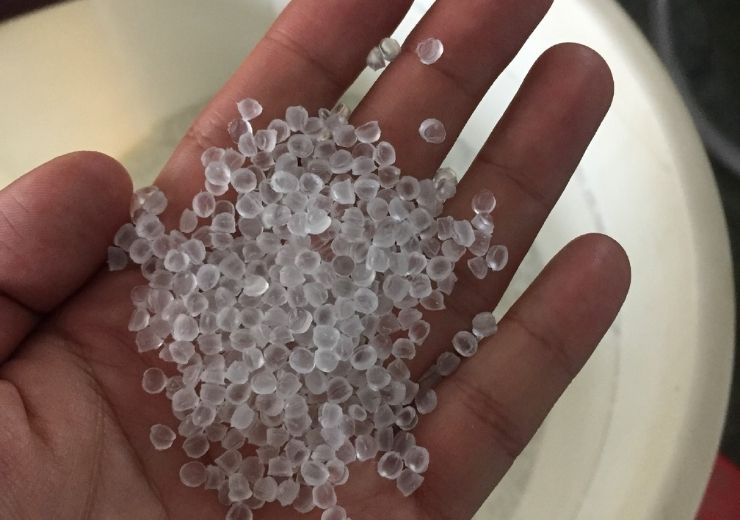

High voltage LED strip light is composed of an FPC circuit board, led chip, PVC particles, and copper wire. We can divide LED strip lights into two categories according to the voltage – High Voltage LED strip lights, and Low Voltage LED strip lights.

High voltage LED strip lights are powered by high Voltage and use alternate currents(AC). The Voltage used in high Voltage LED strip lights are 110V, 120V, 220V, 240 V, etc. High voltage LED strip lights to connect resistance and LED chips in series with the voltage from the mainline. This voltage is called the working voltage.

high voltage led strip light

Figure 1 – High Voltage LED strip lights

On the other hand, low voltage LED strip lights are run by low Voltage, such as 12V/24V. Besides, they use DC current instead of AC like high voltage LED strip lights.

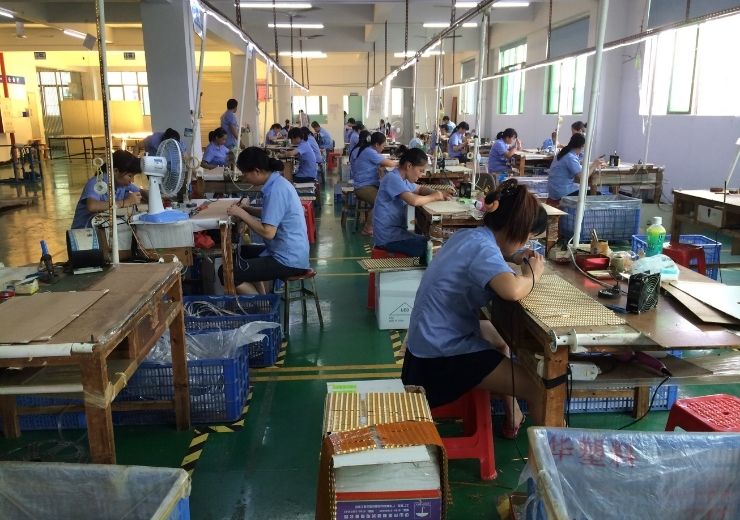

2. How Are High Voltage LED Strip Lights Made?

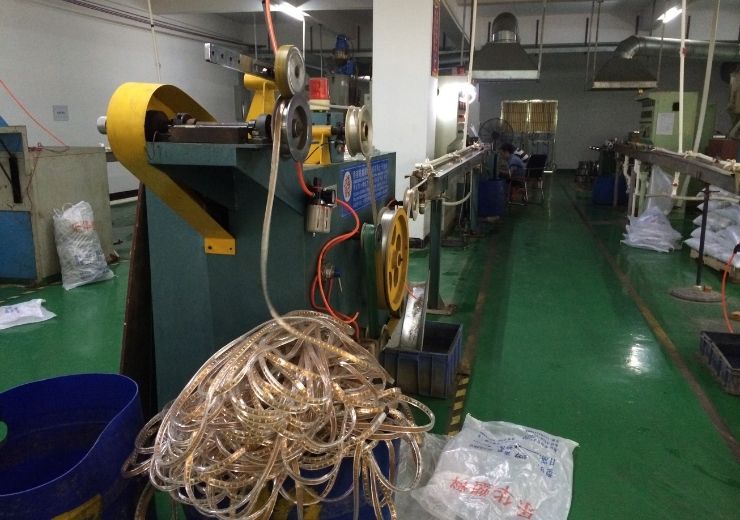

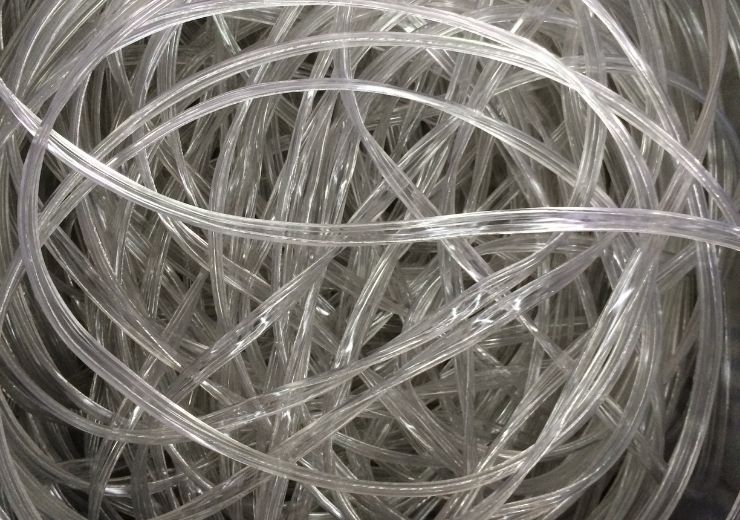

High voltage LED strip lights are mainly made of Printed Circuit boards (PCB) and PVC plastic using the injection molding method. These LED strip lights use wire on either side as the primary power supply wire for the whole strip. The wire can be aluminum wires or copper wires.                                                    led strip light 220v set                                                                      Figure 2 – 220V LED strip lights with PVC

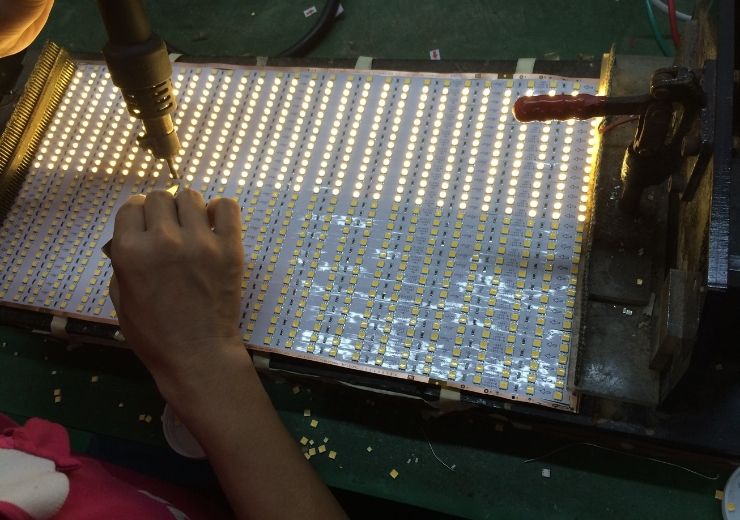

The PCB board is sandwiched between two conductors. The LED chips are distributed on the printed circuit board. And that is how the LED strip lights are made.

Excellent quality LED strip lights are transparent, clean, and have a neat appearance, no very bad smell when used outside, PVC will not become yellow, what’s more, LED will not die in one year, Mikoo all LED Strip Lights to give you at least 2 years warranty.

3. What Are The Advantage Of Mikoo High Voltage LED Strip Lights?



Mikoo High voltage LED strip lights to come with the following advantages:

You can connect 110V/220V/230v/240v LED strip lights directly with a power plug without any power source or extra adapter. It can be used both indoor and outdoor,  and the RoHS PVC material provides an excellent waterproof feature.

The highest length is 100 meters, and you can cut or connect by every one meter. Our new one strip light can be cut by 10cm and can be used in many Lighting projects. Flexible and Many sizes can be customized for use in your projects. You can choose from lots of different colors. The installation process is super easy and saves the cost of power supply.

high voltage led strip light

Figure 3 – 220V LED strip lights

4. The Difference Between Low-Voltage Strip Lights And High-Voltage Strip Lights?



Low and High Voltage LED strip lights to have some significant differences. Such as low voltage strips use Direct current, whereas high voltage strips use Alternate Current (AC). Let’s look at some significant differences between low and high-voltage LED strip lights.

Advantage and Disadvantage



High Voltage LED Strip Lights

When we say high voltage LED strip lights, we refer to 110V/220V LED strip lights, and you can use them simply using a plug. There is no need to use any transformer to connect them. Instead, you will need a plug (inside with a rectifier bridge).

The regular LED model for high voltage LED strip lights is 2835/5050/5730/4040/3014. Besides, high voltage LED strip lights can produce a variety of single color, two-color, RGB color, multi-color, and segment effects.

High voltage LED strip lights to come with lots of advantages, but the two most significant benefits are easy wiring and water resistance. The LED strip lights have a PVC-covered surface which delivers insulation and waterproof capabilities.

The maximum length of high Voltage LED strip lights are 100 meters, and you can illuminate them by simply using a plug directly inserted into a 220V household AC line.

high voltage led strip light

Figure 4- 100-meter-high voltage led strip

Now let’s look at some of the disadvantages of high voltage LED strip lights. The first problem with them is they are built with thick PVC, and you need to be extra cautious to maintain them.

The second disadvantage is the security. As they use high voltage to light up, they are vulnerable to voltage fluctuations, and the strip can burn in worse-case scenarios. Because of these safety hazards, some projects don’t accept high voltage LED strip lights.

Low Voltage LED Strip Lights



When we talk about low voltage LED strip lights, we refer to 5v,12v, or 24 Volt LED strip lights. Low voltage LED strip lights do not use Alternate Current; they use Direct current or DC to power up. When you use Low voltage LED strip lights in your home, you need a transformer or a power supply. That power supply converts the 220 Volt home AC current into 5,12, or 24 Volt, whichever LED strip you are using.

Standard models for low voltage LED strip lights are 3014/2835/5050/5730/2216/5052/4040. Like High voltage LED strip lights, they also have a variety of single colors, two colors, RGB, RGBW options.

low voltage led strip light

Figure 5 – Low voltage LED strip light

The main strength of low-voltage LED strip lights is used in a wide range of applications, are easy to cut, safe, and provide multiple effects. Low voltage LED strip lights to use a low-voltage power supply which is safer, and you can touch it with your hand.

Transformers of low voltage LED strip lights are short-circuiting protected and have multiple voltage options. You can cut the 12V LED strip light to 2.5 cm, and the minimum width can be 4mm.

One important advantage of low voltage LED strips is that you can flexibly use them in a place where you cannot use high voltage LED strip lights. Such as shelves, counters, cabinets, and other places.

The main disadvantage is the high cost of installation. Another disadvantage is the longest strip can only be 10m -30meters. If the strip is more than 30 meters the voltage drops at the end of the strip.

To overcome this problem and maintain the same voltage you will need a special electrical device named, “shunt.” You need transformers to illuminate LED strip lights. Different LED strip lights demand different power supplies, and the cost of power supplies is different.

Besides, to achieve color strip synchronization, you need specific skills or expert support to set up, which increases the installation cost significantly.

Installation Methods

You can use the plug of high voltage LED strip lights to power them up. You can directly connect your high voltage LED strip lights to the 220V or 110V plug.

low voltage led strip light

Figure 6 – Low voltage LED strip light

On the contrary, installing low voltage LED strip lights is a little bit complicated. You will need a power supply or Transformer to connect your low voltage LED strip lights to your home electric connection.

Cost Variation

From general perception, the price of Low and High voltage LED strip lights are similar. But you cannot illuminate the LED strip lights by purchasing the strips only.

If you purchase high voltage LED strip lights, you don’t need any additional power supply. You can light up them using the plug only. Furthermore, the plug can light up to 50 meters of high Voltage LED strip lights.

On the other hand, low voltage LED strip lights run by DC power supply. Standard 5050 1 M LED strip lights to need 12 to 14-watt, which means a 1-meter Low voltage LED strip needs a 15V direct current, which is much higher than high-voltage LED strip lights.

And, if we add the cost of the transformer, then the cost increases more. As a result, though the price of both LED strip lights is similar, low voltage LED strip lights are more costly in terms of power usage and additional devices.

Packaging Difference

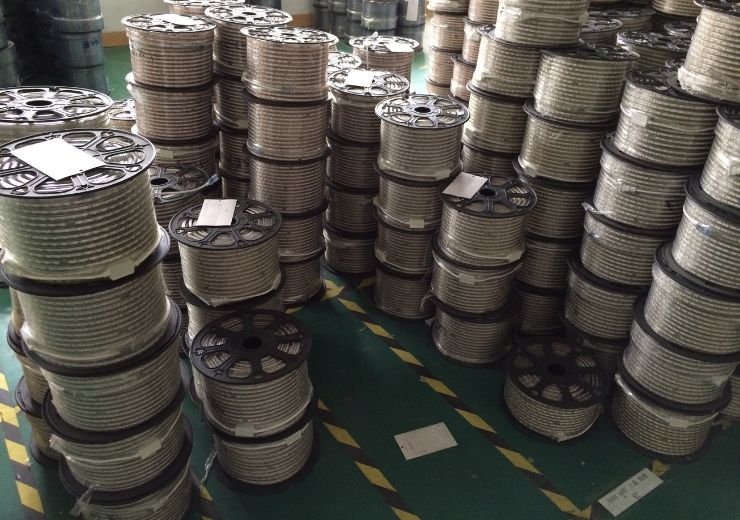

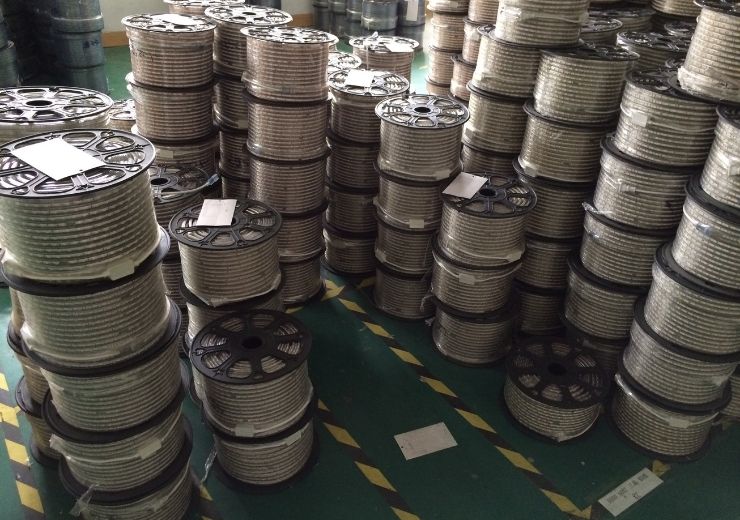

The packaging of high voltage and low voltage LED strip lights are also very different. The roll of high voltage LED strip lights are generally 50 to 100 meters long, and you get one roll, one canton.

Low voltage LED strip lights, on the other hand, come with 5 to 10 meters per box, 20pcs-50pcs in one canton.

low voltage led strip light packagehigh voltage led strip light package

Figure 7- Low voltage and High voltage LED strip light package

Different Cutting Length

Low voltage LED strip lights to have a cutting mark on the surface. You will find a scissor mark on each small section of low voltage strips.

For example, you will find six cutting points in the 24V LED strip lights, and the typical length of each section is 10 cm. In the 12V strip, there are 3 cutting points at about 5 cm.

High voltage LED strip lights to have a 1 and 2 m cut. Some latest high voltage LED strip lights to have a 10cm min-cut. You can cut every blank part as shown in the picture.

low voltage led strip lighthigh voltage led strip light

Figure 8 – The cut mark of High voltage and Low voltage LED strip light

Application Scenarios Vary

Low voltage LED strip lights are easy to use and come with 3M backing. Therefore, they are convenient to use in indoor projects such as cabinets, shelves, counter lighting, a wardrobe, or a bedroom. You can also use low voltage LED strip lights outdoors as boats, pathways, architecture lighting, recreational vehicle lighting, etc.

High voltage LED strip lights to use 220V current and have potential danger if anybody touches the strip wire. As a result, High voltage LED strip lights are used in high positions, out of reach of people. High voltage LED strip lights are not recommended for pools or other soaking areas.

5. When And Why Choose Low Voltage Or High Voltage Strip Lights?



If your project needs long-run LED strip lights, then low voltage LED strip lights cannot properly do that. Even if they can; the cost will be much higher.

So, how do you choose? If your project is less than 32 feet, you should use 12V LED strip lights; for 32 ft to 100 ft, you can use 24 volts, and for over 100 feet, you should use 110V.

6. What Are The Differences Between High Voltage SMD5050 And SMD2835?



SMD5050 and SMD2835 both models are both widely popular LED strips. Both are excellent for lighting up your entire project and have their unique properties.

The dimension of LED chips mounted on SMD2835 is 28mm*35mm*8mm, SMD5050 is 50mm*50mm*15mm.

General LED strip light source is generally SMD5050 and SMD2835, if you want to illumination role, we recommend the SMD5050. If only for decoration, use SMD2835. For example 5050 led strip light is 60led /m, power between 12-14W, the brightness of each meter in about 1000lm.2835 led strip light 60 led/m, its power is only 4.8w/m, about 320LM.

In brief, SMD5050 is best for lighting up large areas such as warehouses, hospitals, airports, etc. And SMD2835 is good enough for home decoration, not too bright and not too dark.

high voltage led strip light High Voltage 5050 LED Strip Light CE, ROHS, ETL

Figure 8 – High voltage led strip light 2835 and 5050

7. What Are The Applications Of High Voltage LED Strip Lights?



High voltage LED strip lights to run on high voltage such as 110V, 220V, etc., and have potential safety hazards. Therefore, the applications of high voltage LED strip lights should be out of reach of people.

Therefore, high voltage LED strip lights are used to concentrate outdoors, decorative lighting, and home ceilings. It is very risky to use these lights for functional lighting.

8. What Are IP Ratings For High Voltage LED Strip Lights?



IP Rating means how much protection the high voltage LED strip light will provide from water and dust. There are various types of IP ratings such as IP65.

IP 65 will protect the strips from partial water connection but you can not submerge IP65 rated strips under the water because they cannot protect water from entering for a long time.

Figure 10 - High voltage LED strip lightsFigure 10 – High voltage LED strip lights

9. Can High Voltage Led Strip Lights Dimmer?



Yes, you can use a dimmer for high voltage LED strip lights.

Conclusion



High voltage LED strip lights are cost-effective and you can install them easily. However, there are some safety issues but you can overcome them by taking proper security measures.

Do you want to know the quotation of our high voltage LED strip lights or have any project in mind? Please send us a message and we will be in touch shortly.

High Voltage LED Strip Light 2835 Figure 10 – High voltage LED strip lights
