LED Strip Work Light for Construction and Tunnel Projects

An LED strip work light has a simple job: put useful light along the route where people are working. On a tunnel wall, a scaffold, or a temporary walkway, one long strip can follow the space more closely than a few widely spaced fixtures. Mikoo supplies reel mounted 2835 LED strip work lights for contractors, lighting distributors, importers, and OEM buyers who need temporary lighting they can plan, install, move, and reorder with consistent specifications.

Our range includes AC 110V and AC 220–230V versions, 25 m and 50 m reels, and SMD 2835 options with 144, 180, or 240 LEDs per meter. The transparent PVC strip housing is rated IP65 on the specified models. Buyers can select the light output, voltage, plug, connectors, and packaging for their market. This guide explains how to choose a configuration and what to confirm before a bulk or project order.

What Is a 2835 LED Strip Work Light？

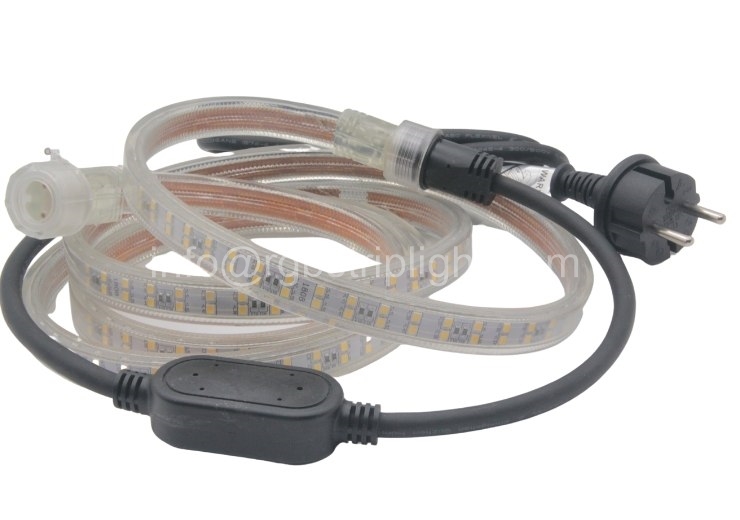

“2835” identifies the SMD LED package used in the strip. A 2835 LED strip work light differs from ordinary decorative tape in how it is supplied and used: the work light is packaged on a portable reel, built for long temporary lighting runs, and paired with a suitable mains power connection and site accessories. The flexible strip can be fixed along a ceiling, wall, handrail, scaffold, or other suitable support to illuminate a work route.

It is useful to distinguish the product from a floodlight. A floodlight sends a concentrated beam across an area. A construction LED strip work light creates a line of illumination along a route or structure. The two can work together: strip lights cover passages and general work zones, while dedicated task lights serve a bench or a detailed job. The right choice depends on mounting height, the width of the area, surface color, and the lighting level required by the project.

Mikoo’s high voltage LED strip work light versions are designed for their specified AC mains supply without a separate external low voltage transformer. The 110V and 220–230V versions are different products. Match the strip and plug assembly to the local supply before ordering or installation.

Where Use LED Strip Work Lights

Tunnel and underground construction？

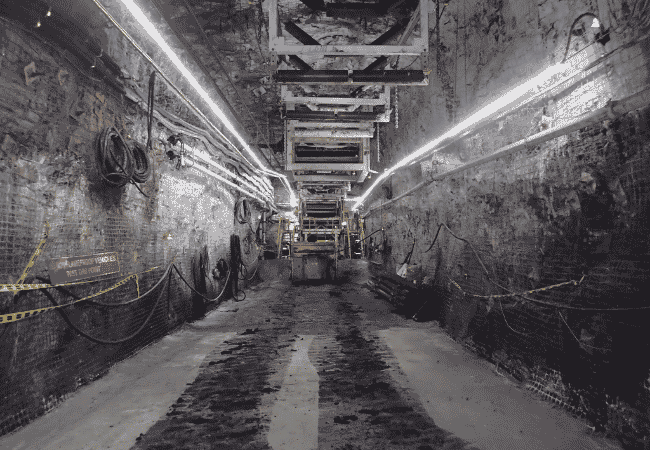

A tunnel LED strip work light can follow a long wall or ceiling as the work advances. Crews can place lighting along an access route, a service area, or a temporary work zone, then move it when the project layout changes. For an underground project, the buyer should specify the route length, mounting position, available power points, and expected exposure to water, dust, and mechanical contact. The site’s emergency lighting, fire, and electrical requirements must be checked separately; general temporary work lighting is not automatically an approved emergency system.

Building sites and scaffolding

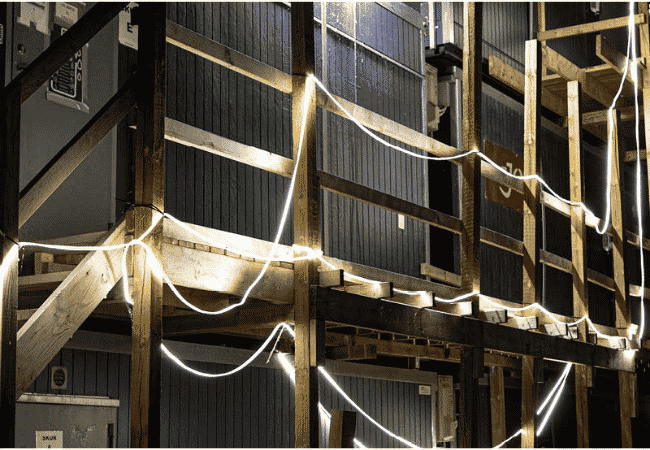

On a building site, a reel of LED strip lighting can follow scaffolding, a stairway, a corridor, or a floor under renovation. The strip helps put light near the route people use instead of relying entirely on a fixture at one end. Installers should keep the cable away from sharp edges, moving equipment, and places where it could create a trip hazard. Clips or ties should hold the strip without crushing its housing.

Industrial maintenance and temporary access

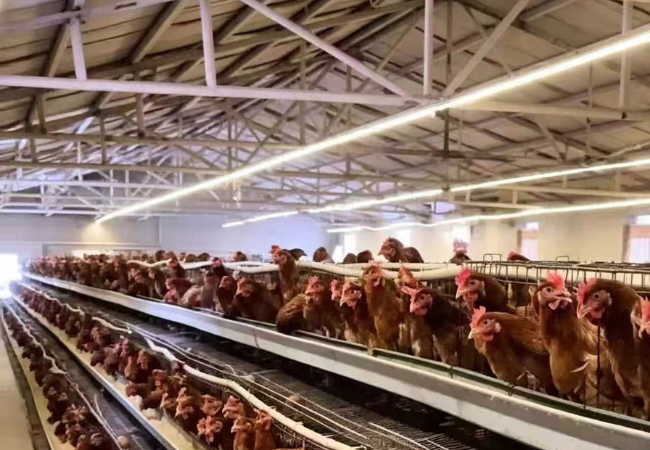

Long industrial passages, warehouse maintenance zones, bridge work, and temporary access routes may need lighting that can be relocated. A reel format is useful where a fixed lighting installation would be premature. A project contractor can estimate the route, select the required reel lengths, and include matching plugs, connectors, clips, and spare end caps in the same order.

Choose the Right LED Density and Brightness

The Mikoo range offers three SMD 2835 LED densities. The choice should start with the work activity and layout, not with the largest number on the product label. A narrow route with reflective walls has different needs from a wide, dark work zone. Mounting height, spacing, and other lights on site also affect the result.

The 240 LEDs/m 2835 LED strip work light is the higher output option in this range. It may suit projects that need more light along a route, but the higher power draw matters when planning a long run. A 144 LEDs/m version can be appropriate where general coverage is enough. The 180 LEDs/m version is listed at 800 lm/m; request the test data for the exact model before using any lumen figure in a tender or product listing.

Standard color temperature options in the source range are 4000 K and 6000 K. The 4000 K option has a more neutral appearance; 6000 K appears cooler. Color temperature is a visual choice, not a substitute for a lighting calculation. If the project specifies an illuminance level, share its drawings and mounting conditions so the chosen model can be assessed for that application.

Voltage, Reel Length, and Connected Run

The 110V LED strip work light and 220–230V LED strip work light are intended for their matching AC supplies. A destination market may also require a particular plug, marking, or test documentation. Confirm the local voltage and plug standard early, especially when one distribution program serves several countries. Never assume the same plug assembly fits every version.

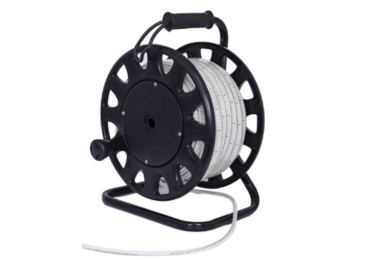

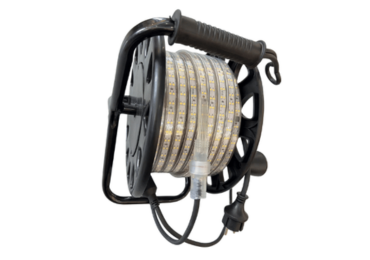

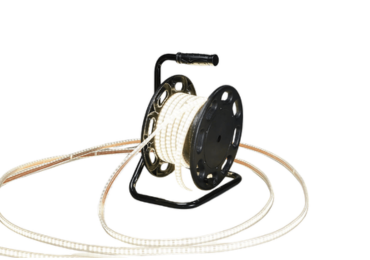

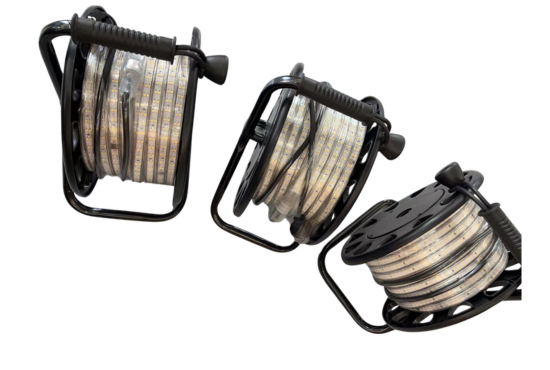

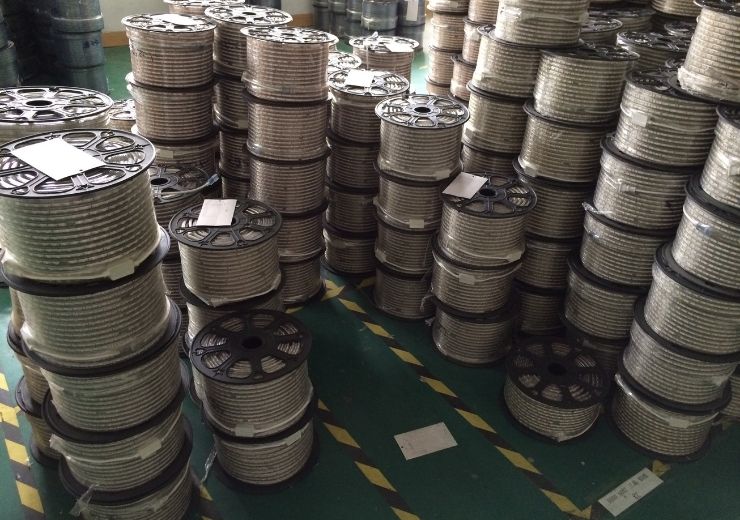

Standard reels are 25 m and 50 m. A 25 m reel can be convenient for a room, short corridor, or small work zone. A 50 m reel suits a longer route with fewer changes of location. The reel also helps with transport and storage: the strip can be unrolled along the planned route and wound back after the job. Before energizing a reel, fully unroll the strip in accordance with the instructions for that model. Leaving an energized strip tightly wound can trap heat.

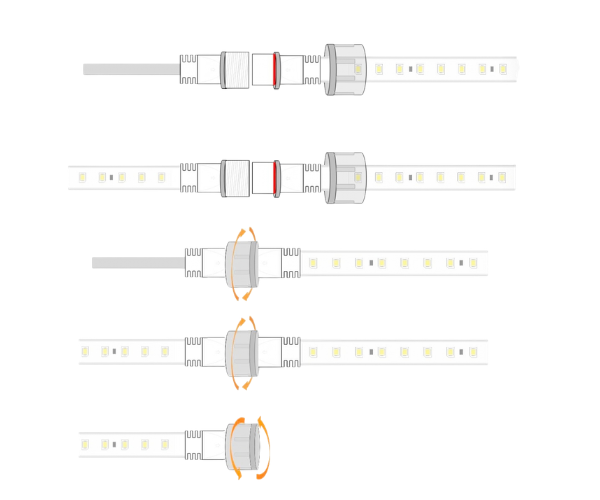

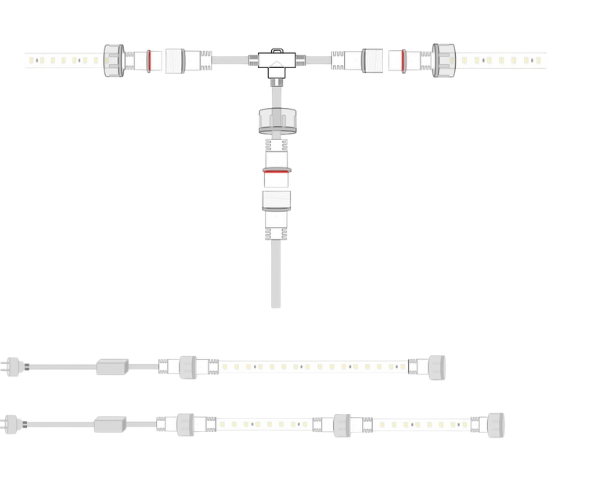

For the confirmed connector configuration, two compatible 25 m reels can be joined to make a maximum 50 m continuous run. This is a specific product limit, not permission to keep adding reels. Use the approved male and female connectors, check the seals, and confirm the total length and connected load on the purchase order. Where the site needs a longer illuminated route, plan multiple approved runs with suitable power points instead of exceeding the limit of one connection.

What IP65 Means on a Worksite？

The specified PVC strip housing is IP65 rated. This indicates protection against dust and water jets under the applicable test conditions. It is useful for temporary worksite lighting exposed to dust and routine outdoor moisture. It does not make every part of an installed system waterproof in every situation. A loose connector, damaged cable, unsealed cut end, or unsuitable plug can undermine the protection of the assembly.

For an outdoor LED strip work light installation, confirm the protection rating of the complete configuration, including connectors, end cap, plug assembly, and any field made joints. Keep electrical connections away from standing water and protect the strip from crushing, abrasion, and sharp bends. Do not immerse an IP65 strip. If the site has chemicals, explosive atmospheres, hot work, or a permanent outdoor installation, discuss those conditions before selecting a product.

Plan the Installation Before Unrolling

Start at the power point and trace the proposed lighting route. Mark the attachment positions, changes of direction, work areas, and points that need protection from machinery. Check whether one reel covers the route or whether two approved 25 m reels will be connected. Order the correct plug and accessory set for the chosen voltage and destination market.

At installation, inspect the strip housing and all connection parts. Unroll the strip before switching it on. Fix it with compatible clips, ties, or another approved method, leaving gradual bends rather than pulling it around sharp corners. Keep it clear of moving equipment and pedestrian routes where possible. Any electrical work that local rules reserve for qualified personnel should be carried out by them.

At the end of the job, disconnect the supply before removing the strip. Check for cuts, cracks, or damaged connectors, then wind the clean, dry strip onto its reel for storage. A work light that is regularly moved needs careful handling at joints and connection points; inspection before reuse matters as much as the initial installation.

Accessories for a Complete Project Set

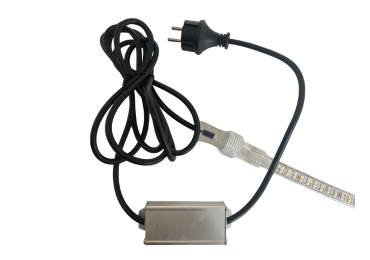

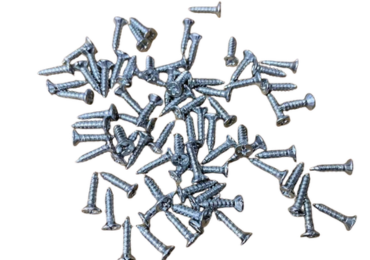

A project set can include the reel mounted strip, a power plug and cable, approved male and female connectors, an end cap, mounting clips, and cable ties. The exact contents depend on the model and the buyer’s packaging plan. A photograph of a plug or connector does not establish that every accessory is included with every reel, so the accessory list should be written into the quotation and order.

For distributors, consistent accessories make the product easier to stock and sell. A buyer may want spare end caps and connectors for installation teams, labeled reels for quick identification, and cartons that separate voltage variants. For contractors, the most important check is that the accessories on site match the strip, voltage, and approved connected length. Mixing visually similar parts from different versions can cause avoidable installation problems.

Can the Strip Be Cut or Repaired

Cut only at the marked points for the confirmed model and use the specified end cap and sealing method. High voltage work lights do not necessarily share the cut intervals or field repair methods of 12V or 24V decorative tape. A cut in the wrong place can interrupt the circuit and leave an unsafe end. If a project repeatedly needs a special length, ask about factory prepared lengths instead of planning extensive field cutting.

If a section stops lighting, first disconnect the power. Check the supply voltage, plug, connector, visible housing, and any recent bend or impact. A dark section can result from an installation fault, damaged wiring, water entering an unsealed joint, or a production defect. Do not keep energizing a damaged strip. Record the affected length and batch details, then follow the product specific service instructions or contact the supplier for an approved replacement approach.

Product Details to Confirm for Your Order

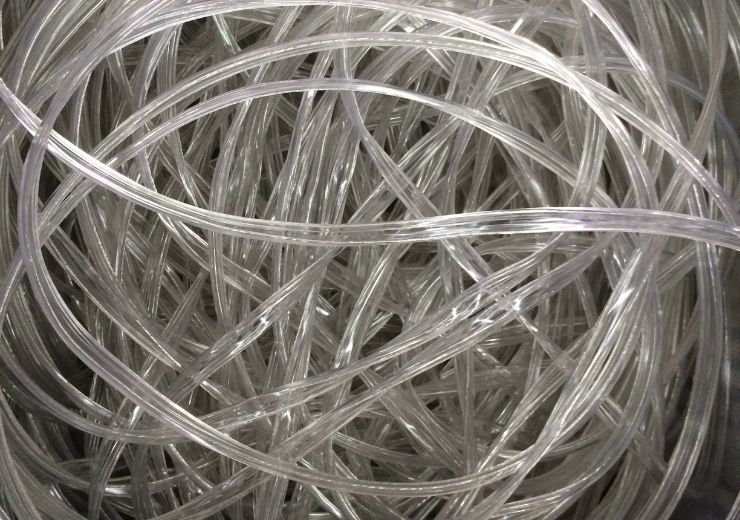

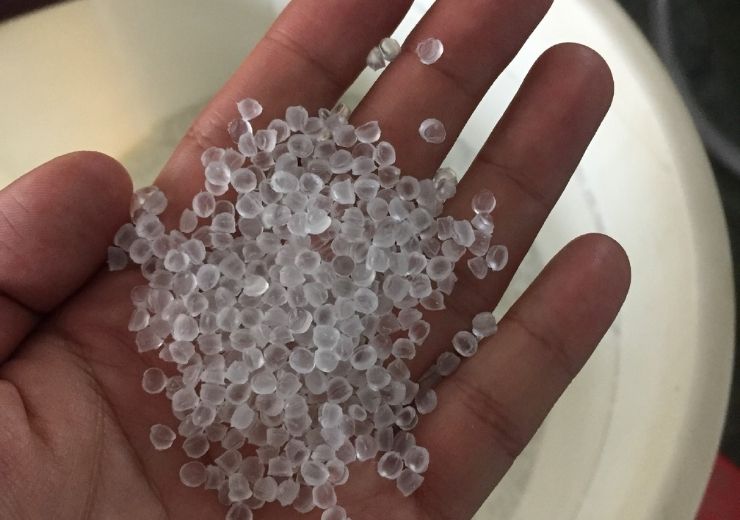

The supplied product documents describe transparent PVC housing, a 15 × 7 mm strip profile, and a color rendering index of Ra 80 or higher. They also list an operating temperature range of -25°C to +80°C for the product range. These figures should be confirmed against the final model data sheet and the conditions of the actual installation. Surface temperature, enclosure, and heat from adjacent equipment can matter as much as ambient air temperature.

Product documents list CE, GS, RoHS, and ETL options, with warranty terms of two to three years depending on the confirmed model and project. Do not assume every approval and warranty period applies to every voltage, plug, or destination market. Ask for the current certificate or report covering the exact configuration you intend to import. Agree the warranty terms in the quotation and purchase order.

OEM and Bulk Supply for Professional Buyers

Importers, lighting distributors, construction material wholesalers, and private label brands often need more than a standard reel. Mikoo can discuss voltage version, LED density, color temperature, reel length, plug type, product labels, reel labels, cartons, and packaging artwork for a bulk program. The source documents identify 1,000 m and above as a typical level for customized orders; the final minimum and lead time depend on the requested configuration.

An OEM 2835 LED strip work light program works best when the buyer sends one clear specification for each sales market. A European distributor, for example, may need different plug and document checks from a buyer serving North America or Japan. It is better to settle the destination, voltage, approvals, and carton marking before production than to discover a mismatch when goods reach the warehouse.

For project supply, the order should also describe how the strip will be used. A drawing or simple route sketch helps determine whether 25 m or 50 m reels make sense, how many power points are required, and whether the specified connection system covers the route. Share any site specific requirements for moisture, temperature, mounting, or inspection. These details turn a generic lighting inquiry into a usable project quotation.

How to Compare Work Light Suppliers？

When comparing an LED strip work light manufacturer or supplier, ask for more than a headline price per meter. The quote should identify the complete configuration: LED density, power, lumen output, reel length, voltage, plug, housing, connectors, end cap, packaging, and warranty. A lower price may reflect a different accessory set or a model that is less suitable for the intended route. Comparing like for like saves time when samples arrive.

Request a sample of the same configuration that would be shipped in bulk. Check the strip along its full length, inspect the plug and end cap, and confirm that the reel can be handled and rewound without stressing the cable. If your buyer needs to connect two 25 m reels, test that exact connector arrangement. Keep a record of the sample label and specification so the production order can refer to the approved version.

For a distributor, think about what the next customer will ask. Can staff identify 110V and 220–230V cartons at a glance? Does each kit have a clear accessory list? Is there an installation instruction that states the approved connected length and tells users to unroll the strip before powering it? Do the certificates cover the version being sold? Clear answers help the buyer list the product accurately and reduce avoidable after sales questions.

For a contractor, look at delivery in work zones rather than just total meters. A 500 m order could mean ten 50 m reels, twenty 25 m reels, or a mix. The right mix depends on where power is available and how often sections will be moved. Ask the supplier to quote the reel quantities and connector sets together, so the goods arriving on site match the installation plan.

Is a separate transformer needed？

The high voltage versions are designed for direct connection to their specified AC supply through the correct power assembly. They do not require a separate external low voltage transformer. The 110V version must be used on a compatible 110V supply, and the 220–230V version on a compatible 220–230V supply. Confirm frequency and plug requirements for the destination market.

Can one reel stay powered while wound up？

No. Fully unroll the strip before use according to the instructions for the selected model. A tightly wound powered reel can retain heat. The reel is for carrying, deployment, collection, and storage; installation conditions still control how the strip should be operated.

Can two 25 m work light reels be connected？

Two compatible 25 m reels can be linked with the approved connector system for a maximum 50 m continuous run in the configuration described here. Confirm the exact model, connector, and load before installation. A different model may have a different permitted run length.

Is IP65 suitable for outdoor work？

IP65 strip housing can suit temporary exposure to dust and water jets, but the complete installation depends on sealed connections and suitable accessories. It is not an immersion rating. Tell the supplier about standing water, severe weather, or permanent exposure before ordering.

Which option should a contractor choose？

Start with the required lighting level and route, then compare 144, 180, and 240 LEDs/m versions. The 144 LEDs/m model is listed at 7 W/m and 700 lm/m, the 180 LEDs/m model at 9 W/m and 800 lm/m, and the 240 LEDs/m model at 10 W/m and 1,150 lm/m. A site plan and mounting height will help narrow the choice.

What should a distributor request before buying？

Request the model data sheet, accessory list, plug drawing, approved maximum connected length, current certificates for the intended market, warranty terms, packaging details, and a sample of the proposed configuration. These documents make it easier to create an accurate listing and support customers after delivery.

Request a Quote for a 2835 LED Strip Work Light

For a clear quote, tell Mikoo your destination country, AC supply voltage, required reel length, preferred 2835 LED density, color temperature, plug standard, estimated quantity, and intended worksite application. Add any requirements for connectors, clips, spare parts, labeling, packaging, and certificates. If the purchase is for a tunnel or construction project, share the lighting route and mounting height as well. We can then discuss a matching LED strip work light configuration for your distribution or project order.
